GoSee is one of leading supplier of Steel Galvanised Shelf Angles.

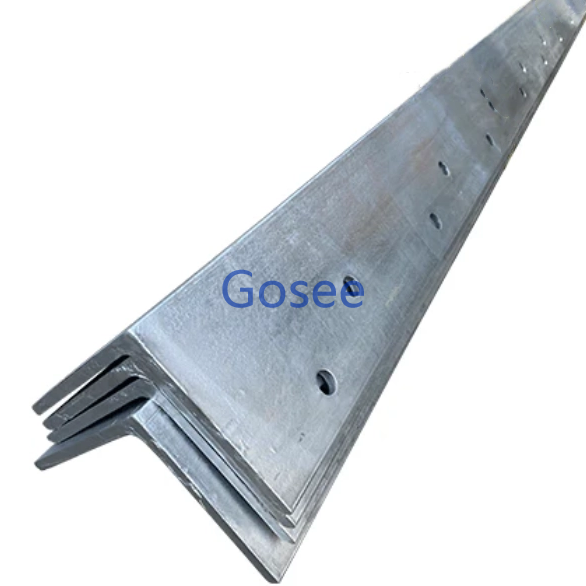

Shelf Angles are sold in 3 metre lenght，has 20mm pre-drilled holes staggered at 300mm centres on one side of angles.

The pre-dilled holes suit a M16 screw bolt or anchor bolt which will fix the angle to the wall.



Available in the following sizes:

· 125mm x 125mm x 10mm

· 150mm x 100mm x 10mm

· 150mm x 150mm x 10mm

Compliance

· Complies to Australian Standard AS 3700 – Masonry Structures.

· Achieves R3 Durability Rating in accordance with AS/NZS 2699.3

· Slotted Holes in accordance with Steel Structures Australian Standard

  AS 4100-1998 (Amendment 1-2012).

· Hot dip galvanised components in accordance with Australian/New Zealand Standard AS/NZS 4680.

Features

• Light weight for easy installation.

• Engineered ensuring peace of mind.

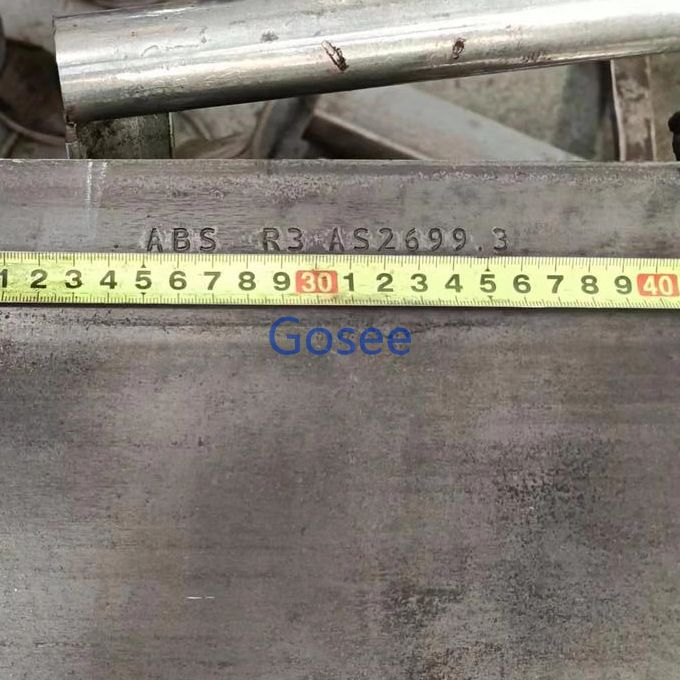

• Metal Stamped – Manufacturer/standard details for identification and long-lasting verification.

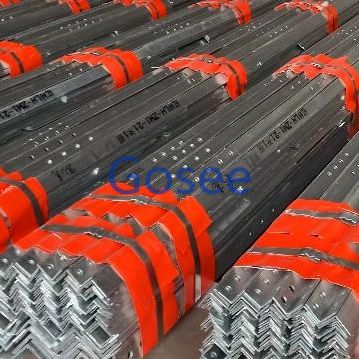

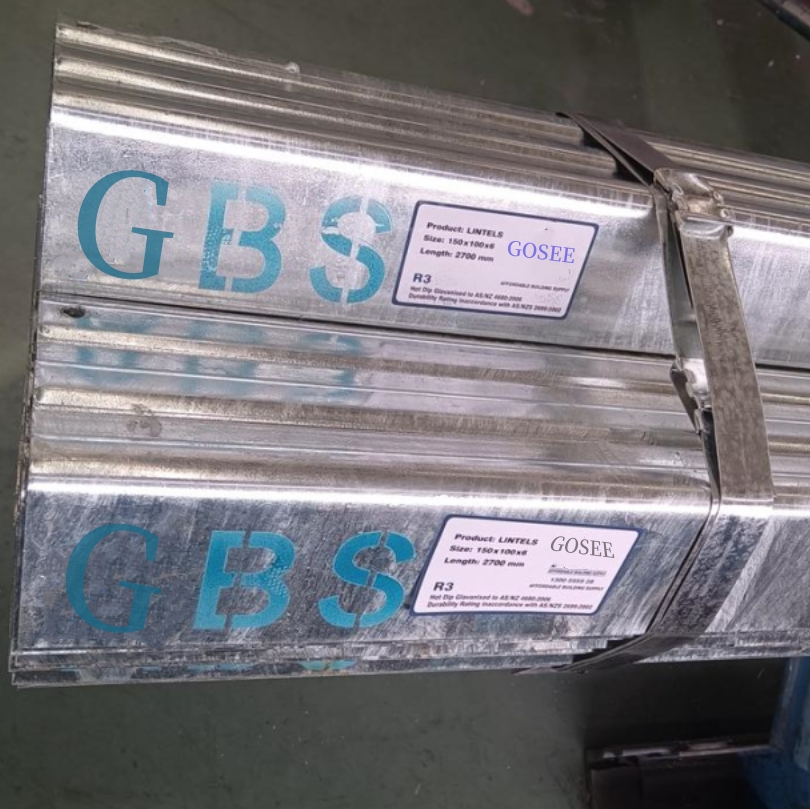

• Product Labelled – Individually labelled with all relevant product details & compliance information.

• Hot Dip Galvanised for superior corrosion protection.
